3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier

Product Categories
Shenzhen Learnew Optoelectronics Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier

  • 1
  • 2
  • 3

Brand Name : Learnew Opto

Model Number : UVC LED

Certification : CE

Place of Origin : China

MOQ : 1000

Price : $9.20-13.00/piece

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000000piece/month

Delivery Time : 7-15 work days

Packaging Details : We use a layer of waterproof material attached to the packaging box to prevent damage to the product

Type : UV LED

Input Voltage(V) : 5-7V

Power : 3W

Warranty(Year) : 2-Year

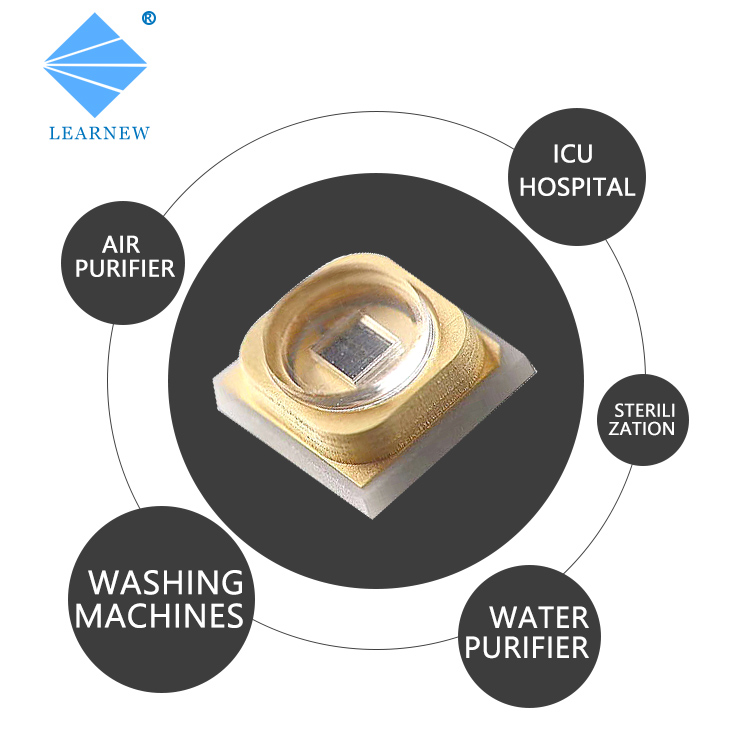

Application : Air purifier Water purifier

Optional Power : 50-70mW

WHOLE SIZE : 3.5*3.5MM

Storage Temperature(℃) : -40 - 100

Chip Material : INGAN

Lens : QUARTZ GLASS LENS

IF : 350-500mA

Working Time (hours) : 10000

Lighting solutions service : Lighting and circuitry design, LitePro DLX layout, auto CAD layou

Contact Now

3W 3535 UVC 255NM 265NM 275NM LED CHIPS FOR AIR PURIFIER UV LED

Specification
Design Advantage
1,Quartz glass package 2,High radiant flux 3,Narrow Wavelength 4,Inorganic & Nitrogen package 5,Low thermal resistance
VIEW ANGLE
120°
Thermal Resistance
4.7-6.9℃/W
LENS
QUARTZ GLASS LENS

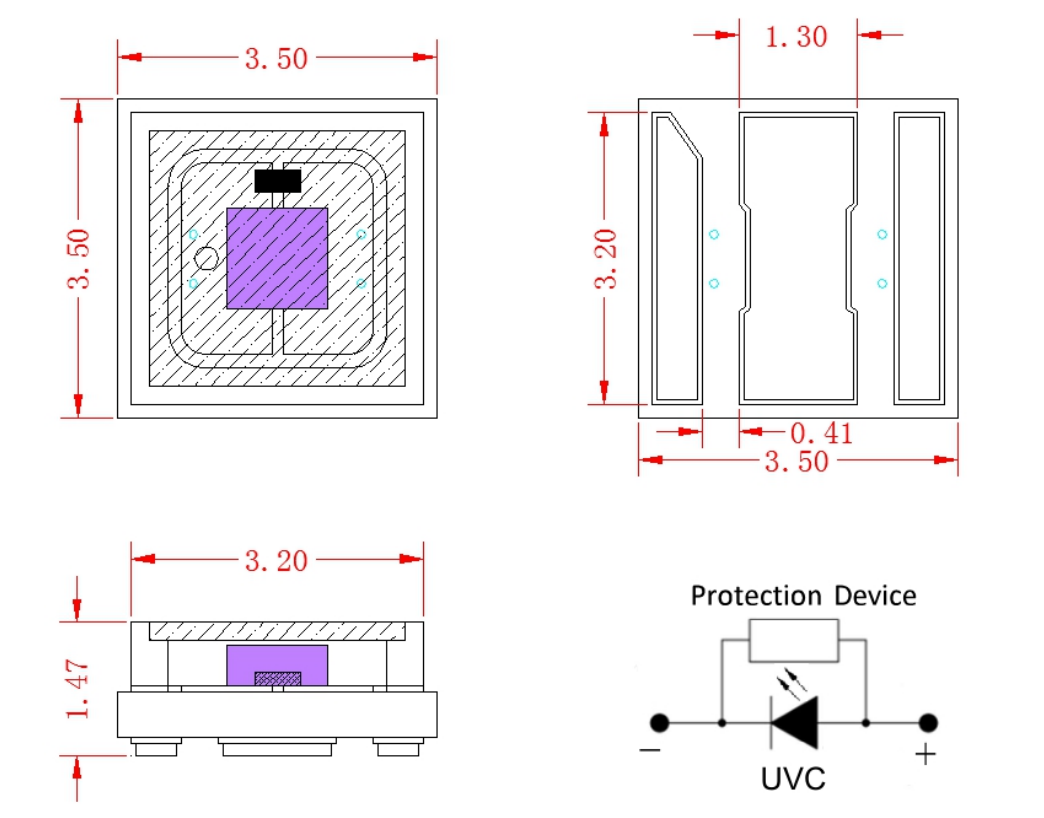

WHOLE SIZE
3.5*3.5MM
Warranty
LM70=5000Hrs LM50=10000Hrs
Radiant flux
50-70mW
Warranty
10,000Hrs
or 2 years
SUBSTRATE
ALN Coppering
CHIPS
Flip Chip (PW or LG)
Soldering Temperature
Reflow Soldering : 260ºC
Hand Soldering : 350ºC
Product Description
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
LN-SMD3535UVC-P3D
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
LN-SMD3535UVC-P3D
3w 3535 255nm UV UVC LED Chips 265nm 275nm For Air Water Purifier
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team. Q6: How to place an order? A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins. Q7: What payment terms are available? A7: T/T,PayPal, Western Union and Secure Payment. Q8: What about the lead time? A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Our Advantages
Q1: Do you supply OEM,ODM service? A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years. Q2: All the pictures are real photo? A2: Yes, the pictures of all products on this page are 100% real shoot by us. Q3: How can I get a quotation from you? A3: Please kindly leave us messages about your needs,including products parameters, application, you contact way and quantity,our professional team will reply you in one hour here. Q4: Is there any discount for bulk order? A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time. Q5: Do you support drop shipping and how much is the shipping cost? A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team. Q6: How to place an order? A6: You can check the shipping cost and discount information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins. Q7: What payment terms are available? A7: T/T,PayPal, Western Union and Secure Payment. Q8: What about the lead time? A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
